Stellar Orientation Alignment

The Challenge

Players must discover the correct orientation coordinates through clues in the escape room. These might be hidden in star charts, navigation logs, or encoded messages.

With 45 positions per axis, there are 91,125 possible combinations (45³), making random guessing impractical and requiring players to solve the clues.

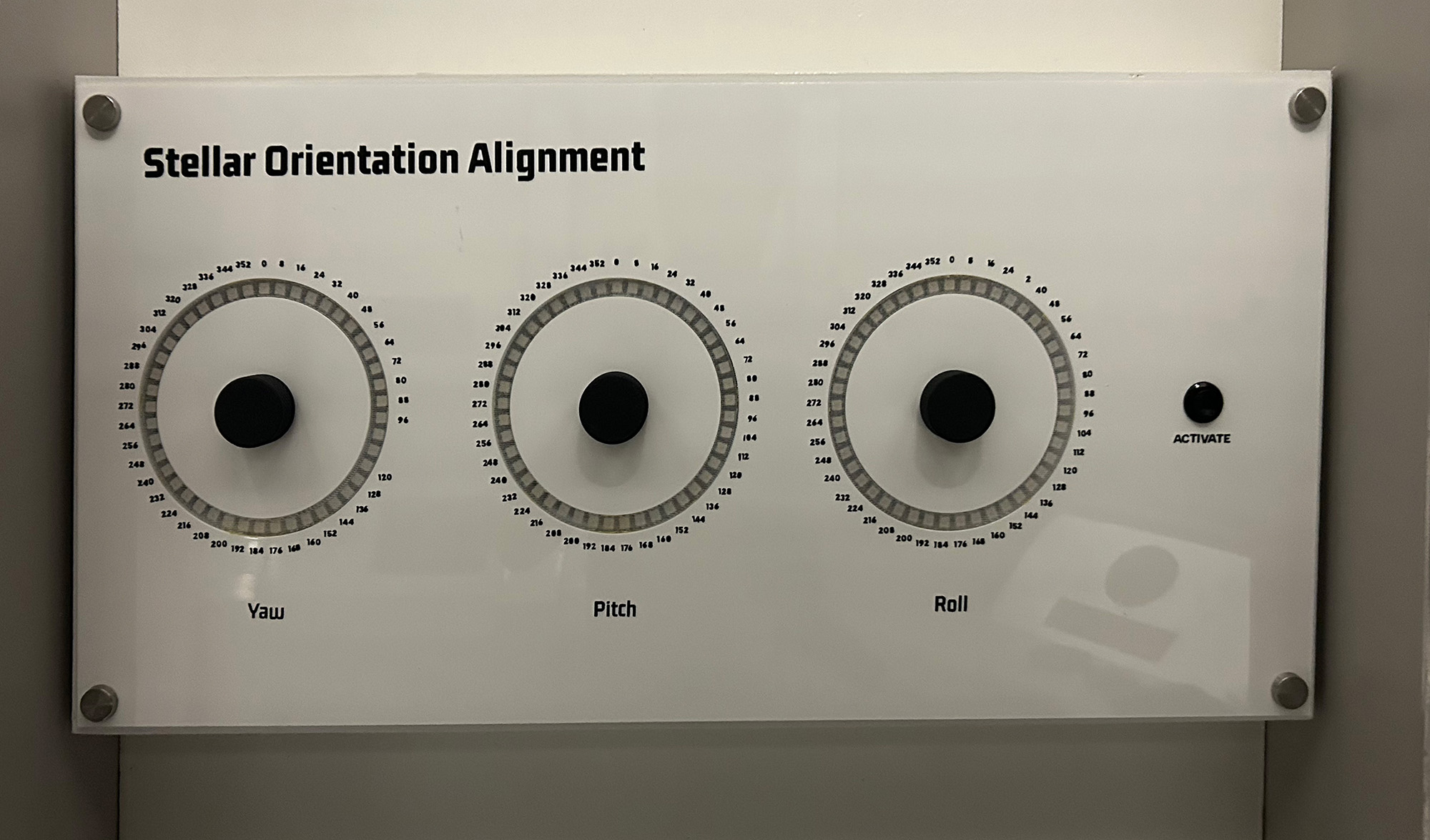

The visual representation helps players understand spacecraft orientation concepts while providing an intuitive control interface.

How Players Interact

• Observe the rings: Each ring represents one axis of spacecraft orientation
• Turn encoders: Rotate to adjust yaw (vertical), pitch (lateral), or roll (longitudinal) axes
• Watch LED feedback: Bright LED shows current position on each colored ring
• Press to validate: Hit the activation button to check if coordinates are correct
• Interpret results: Green flash = success, red flash = incorrect alignment

1Include Required Libraries

Import all necessary libraries for LED control, WiFi connectivity, and JSON communication:

// Core Arduino library
#include <Arduino.h>

// LED control library
#include <FastLED.h>

// Network libraries
#include <WiFi.h>
#include <WebSocketsClient.h>
#include <ArduinoJson.h>

What each library does:

FastLED.h: High-performance library for controlling WS2812B LEDs. Provides smooth color manipulation and efficient data transmission for our three orientation rings.

WiFi.h: ESP32's built-in WiFi library for network connectivity. Essential for connecting to the escape room's control network.

WebSocketsClient.h: Enables real-time bidirectional communication with the escape room server. Perfect for instant status updates and remote control.

ArduinoJson.h: Efficient JSON parsing and generation. Used to format orientation data and status messages in a standard format.

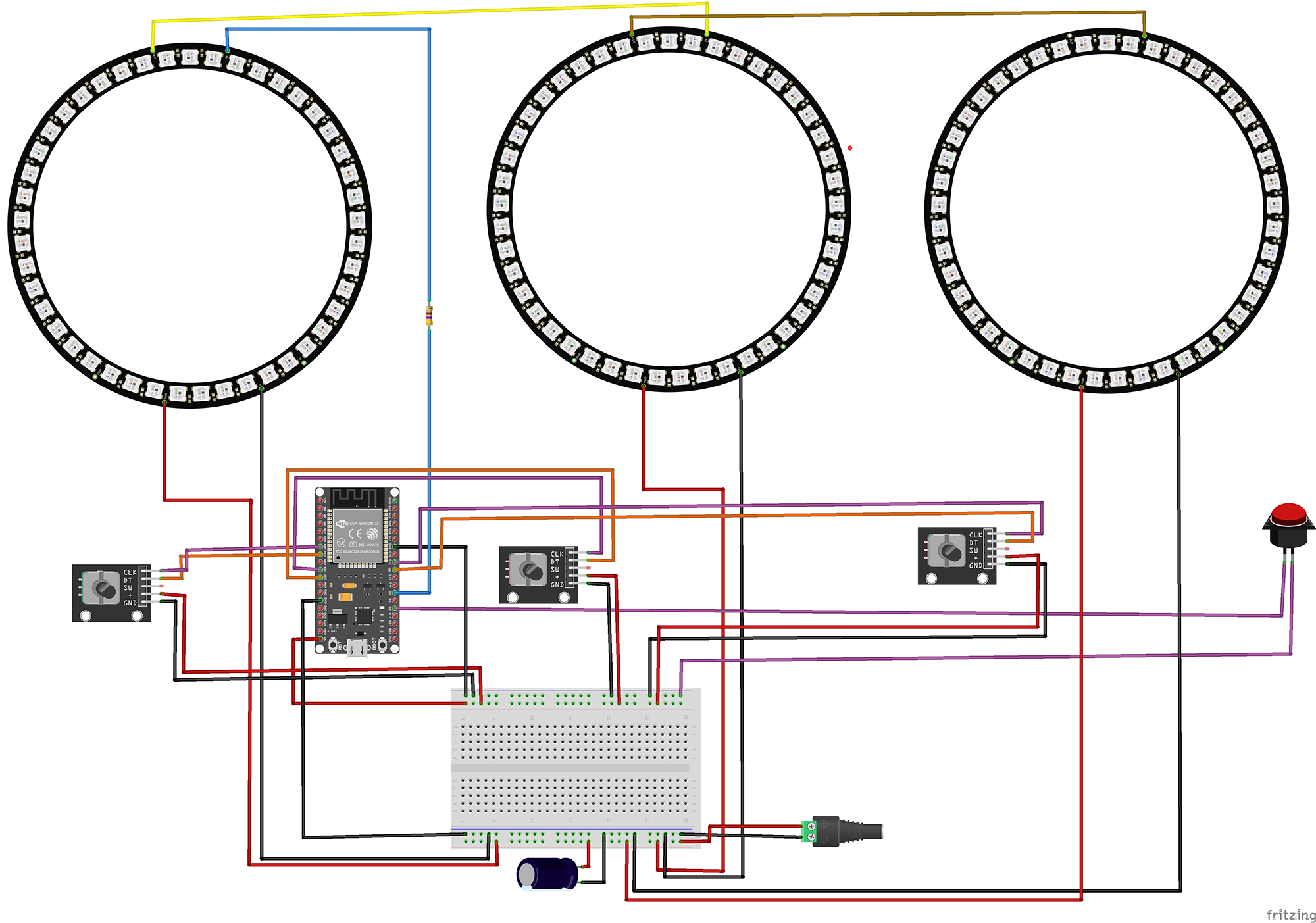

2Pin Definitions and Configuration

Define all hardware connections and network settings:

// Pin Definitions
#define YAW_PIN_A 33
#define YAW_PIN_B 32
#define PITCH_PIN_A 27
#define PITCH_PIN_B 26
#define ROLL_PIN_A 18
#define ROLL_PIN_B 5
#define LED_PIN 4
#define ACTIVATE_BUTTON 2

// Network Configuration
const char* ssid = "Network SSID";
const char* password = "Network Password";
const char* wsHost = "172.16.12.2";
const int wsPort = 1880;
const char* wsPath = "/events";

// Static IP Configuration
IPAddress local_IP(172, 16, 12, 11);
IPAddress gateway(172, 16, 12, 1);
IPAddress subnet(255, 255, 255, 0);

// Puzzle identification
const char* PUZZLE_ID = "SOA";

Configuration explained:

Encoder pins: Each encoder uses two GPIO pins for quadrature encoding. The pins are chosen to avoid conflicts with WiFi and other ESP32 functions.

Static IP: Ensures the puzzle always has the same network address, crucial for reliable server communication.

PUZZLE_ID: "SOA" stands for "Stellar Orientation Alignment" - unique identifier in the escape room system.

3LED Ring Configuration

Set up the visual representation for each orientation axis:

// LED Configuration
#define LEDS_PER_RING 45
#define TOTAL_LEDS (LEDS_PER_RING * 3)
#define STEPS_PER_DETENT 4
#define INCREMENT_VALUE 8

// Colors for each axis
const CRGB YAW_COLOR = CRGB(0, 255, 255);    // Cyan
const CRGB PITCH_COLOR = CRGB(128, 0, 128);  // Purple
const CRGB ROLL_COLOR = CRGB(255, 255, 0);   // Yellow

// Solution coordinates (Yaw-Pitch-Roll)
const int SOLUTION[3] = {136, 48, 272};

// State Variables
CRGB leds[TOTAL_LEDS];
int ringValues[3] = {0, 0, 0};  // Yaw, Pitch, Roll
bool solved = false;

LED organization:

Ring assignment: Ring 1 (LEDs 0-44) = Roll, Ring 2 (LEDs 45-89) = Pitch, Ring 3 (LEDs 90-134) = Yaw

Color coding: Each axis has a distinct color matching spacecraft orientation conventions. Cyan for yaw (vertical axis), purple for pitch (lateral axis), yellow for roll (longitudinal axis).

Increments: Each encoder click moves 8 degrees, providing 45 positions per full rotation (360°/8° = 45 positions matching LED count).

Solution: The target orientation in degrees. Players must discover these coordinates through clues in the escape room.

4Interrupt-Driven Encoder Reading

Implement responsive encoder handling using hardware interrupts:

// Generic encoder update function
void IRAM_ATTR updateEncoder(int index, int pinA, int pinB) {
    int MSB = digitalRead(pinA);
    int LSB = digitalRead(pinB);
    int encoded = (MSB << 1) | LSB;
    int sum = (lastEncoded[index] << 2) | encoded;

    // Determine rotation direction using state machine
    if (sum == 0b1101 || sum == 0b0100 ||
        sum == 0b0010 || sum == 0b1011) {
        encoderValue[index]++;
    } else if (sum == 0b1110 || sum == 0b0111 ||
               sum == 0b0001 || sum == 0b1000) {
        encoderValue[index]--;
    }

    lastEncoded[index] = encoded;
}

// Individual interrupt handlers for each axis
void IRAM_ATTR updateYaw() {
    updateEncoder(0, YAW_PIN_A, YAW_PIN_B);
}
void IRAM_ATTR updatePitch() {
    updateEncoder(1, PITCH_PIN_A, PITCH_PIN_B);
}
void IRAM_ATTR updateRoll() {
    updateEncoder(2, ROLL_PIN_A, ROLL_PIN_B);
}

Encoder processing explained:

IRAM_ATTR: Places interrupt handler in RAM for faster execution, crucial for responsive control.

Gray code decoding: The bit patterns represent valid state transitions in quadrature encoding, determining clockwise vs counterclockwise rotation.

Index mapping: 0=Yaw, 1=Pitch, 2=Roll - each encoder updates its corresponding axis value.

No debouncing needed: Quadrature encoding inherently provides noise immunity through its state machine approach.

5LED Display and Animation

Create visual feedback showing current orientation and validation results:

void updateLEDs() {
    FastLED.clear();

    // Roll Ring (Ring 1 - Inner)
    for (int i = 0; i < LEDS_PER_RING; i++) {
        leds[i] = ROLL_COLOR;
        leds[i].nscale8(15);  // Dim background
    }
    leds[ringValues[2] / 8] = ROLL_COLOR;  // Bright position marker

    // Pitch Ring (Ring 2 - Middle)
    for (int i = 0; i < LEDS_PER_RING; i++) {
        leds[i + LEDS_PER_RING] = PITCH_COLOR;
        leds[i + LEDS_PER_RING].nscale8(15);
    }
    leds[ringValues[1] / 8 + LEDS_PER_RING] = PITCH_COLOR;

    // Yaw Ring (Ring 3 - Outer)
    for (int i = 0; i < LEDS_PER_RING; i++) {
        leds[i + (LEDS_PER_RING * 2)] = YAW_COLOR;
        leds[i + (LEDS_PER_RING * 2)].nscale8(15);
    }
    leds[ringValues[0] / 8 + (LEDS_PER_RING * 2)] = YAW_COLOR;

    FastLED.show();
}

void playSuccessAnimation() {
    for (int flash = 0; flash < 3; flash++) {
        // Set all LEDs to green
        for (int i = 0; i < TOTAL_LEDS; i++) {
            leds[i] = CRGB::Green;
        }
        FastLED.show();
        delay(200);

        FastLED.clear();
        FastLED.show();
        delay(200);
    }
    updateLEDs(); // Return to normal display
}

void playFailureAnimation() {
    for (int flash = 0; flash < 3; flash++) {
        // Set all LEDs to red
        for (int i = 0; i < TOTAL_LEDS; i++) {
            leds[i] = CRGB::Red;
        }
        FastLED.show();
        delay(200);

        FastLED.clear();
        FastLED.show();
        delay(200);
    }
    updateLEDs(); // Return to normal display
}

6WebSocket Communication

Implement real-time communication with the escape room server:

void sendInitializationMessage() {
    if (!connected) return;

    StaticJsonDocument<256> doc;
    doc["shortName"] = PUZZLE_ID;
    doc["type"] = "INITIATION";

    // Create nested object for orientation values
    JsonObject orientation = doc.createNestedObject("orientation");
    orientation["yaw"] = ringValues[0];
    orientation["pitch"] = ringValues[1];
    orientation["roll"] = ringValues[2];

    doc["solved"] = solved;

    String jsonString;
    serializeJson(doc, jsonString);
    webSocket.sendTXT(jsonString);
}

void sendOrientationUpdateMessage() {
    if (!connected) return;

    StaticJsonDocument<256> doc;
    doc["shortName"] = PUZZLE_ID;
    doc["type"] = "UPDATE";
    doc["yaw"] = ringValues[0];
    doc["pitch"] = ringValues[1];
    doc["roll"] = ringValues[2];

    String jsonString;
    serializeJson(doc, jsonString);
    webSocket.sendTXT(jsonString);
}

Message types:

INITIATION: Sent on connection to register puzzle and report initial state.

UPDATE: Sent whenever any encoder changes position, allows real-time monitoring.

SOLVE: Sent when puzzle is solved or becomes unsolved, triggers next puzzle in sequence.

All messages include current orientation values for complete state tracking.

7Solution Checking

Validate the current orientation against the target coordinates:

bool checkSolution() {
    previouslySolved = solved;
    bool foundSolution = false;

    // Check against the solution: Y136 P48 R272
    if (ringValues[0] == SOLUTION[0] &&
        ringValues[2] == SOLUTION[2]) {
        foundSolution = true;
    }

    if (foundSolution) {
        // Play animation and update state if needed
        playSuccessAnimation();
        if (!solved) {
            solved = true;
            sendSolvedMessage(true);
        }
        return true;
    } else {
        // Play animation and update state if needed
        playFailureAnimation();
        if (solved) {
            solved = false;
            sendSolvedMessage(false);
        }
        return false;
    }
}

Solution validation:

Exact match required: All three axes must be precisely aligned to the target coordinates.

State tracking: Only sends network messages when puzzle state changes (solved→unsolved or vice versa).

Visual feedback: Always plays animation on button press for immediate player feedback.

Auto-detection: If values change after solving, automatically marks as unsolved if coordinates no longer match.

1Initial Hardware Verification

Upload this test sketch to verify all components:

void setup() {
    Serial.begin(115200);

    // Test encoders
    pinMode(YAW_PIN_A, INPUT_PULLUP);
    pinMode(YAW_PIN_B, INPUT_PULLUP);
    pinMode(PITCH_PIN_A, INPUT_PULLUP);
    pinMode(PITCH_PIN_B, INPUT_PULLUP);
    pinMode(ROLL_PIN_A, INPUT_PULLUP);
    pinMode(ROLL_PIN_B, INPUT_PULLUP);

    // Test LED rings - light each ring in sequence
    FastLED.addLeds<WS2812B, LED_PIN, GRB>(leds, TOTAL_LEDS);
    FastLED.setBrightness(50);

    // Light Roll ring (yellow)
    for(int i = 0; i < 45; i++) {
        leds[i] = CRGB::Yellow;
    }
    FastLED.show();
    delay(1000);

    // Add Pitch ring (purple)
    for(int i = 45; i < 90; i++) {
        leds[i] = CRGB::Purple;
    }
    FastLED.show();
    delay(1000);

    // Add Yaw ring (cyan)
    for(int i = 90; i < 135; i++) {
        leds[i] = CRGB::Cyan;
    }
    FastLED.show();
}

2Troubleshooting Common Issues

3Serial Monitor Debug Output

Press the activation button to see current orientation values:

Current Values:
Yaw: 136
Pitch: 48
Roll: 272
Target: Yaw=136, Pitch=48, Roll=272
---------------

WebSocket connected to: /events
Sent initialization message: {"shortName":"SOA","type":"INITIATION","orientation":{"yaw":136,"pitch":48,"roll":272},"solved":true}
Sent solved status: {"shortName":"SOA","type":"SOLVE","solved":true}

The serial output provides real-time feedback for debugging and monitoring the puzzle state during gameplay.
